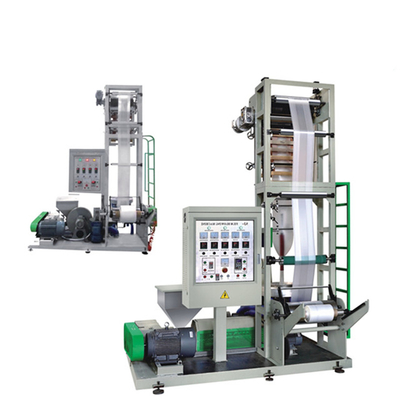

Mini Blown Film Stretch Film Machine Shrink Plastic PE Film Extruder Blowing Machine Cling Wrapping Film Machine

1.0 Sets
MOQ
Mini Blown Film Stretch Film Machine Shrink Plastic PE Film Extruder Blowing Machine Cling Wrapping Film Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Film
Plastic Processed: HDPE, HDPE/PP, LDPE, PE/PP, Lldpe, MLLDPE, PE
Condition: New
Output (kg/h): 30 - 40
Screw Diameter (mm): 45
Number Of Layers: Single-layer
Die Size(mm): 40 - 60 Mm
Model Number: MD-HM45
Year: 2020
Voltage: 380V/3PH/50HZ
Dimension(L*W*H): 1.45x2.28x3.2m
Key Selling Points: Easy To Operate
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Ukraine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Gear
Blow Moulding Type: Extrusion Blow Moulding
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support
Name: Blown Film Machine
Key Words: Film Blowing Machine Extruder
Output: 35kg/hr
Roller Width: 550mm
Winding Speed: 10-80m/min
Power: 30KW
Product Name: Blowing Plastic Film Machine
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Ukraine
Certification: CE Certificated
Basic Infomation
Certification: CE Certificated
Model Number: MD-HM45
Payment & Shipping Terms
Packaging Details: film packing
Product Description

Mini stretch film blowing machine plastic shrink PE blown film extruder machine cling film wrapping machine

Product Description

Model MD-HM35 MD-HM45 MD-HM50 MD-HM55
Suitable material HDPE LDPE LLDPE
Max. Film width (mm) 400 500 600 800
Film thickess (mm) HD: 0.008-0.08
LD: 0.02-0.10
Max. extrusion output HD 20KG/HR
25KG/HR		 35KG/HR
40KG/HR		 40KG/HR
50KG/HR		 50KG/HR
60KG/HR
Gear box 133 146 146 173
Screw Diameter 35mm 45mm 50mm 55mm
Screw L/D ratio 30:1 28:1 28:1 28:1
Driving motor 7.5KW 11KW 15KW 18.5KW
Die size HD: 50mm HD: 60mm HD: 60mm HD: 60/80mm
AIr blower 1.1kw 1.5kw 2.2kw 2.2kw
Air ring 470 620 620 620
Center Steady stick 1pc
Take-up roller width 450mm 550mm 650mm 850mm
embossing roller width 350mm 450mm 550mm 750mm
take-up speed 10-80M/min 10-80M/min 5-60M/min 5-60M/min
take-up motor 0.75kw 0.75kw 0.75kw 1.1kw
Winding roller width 450mm 550mm 650mm 850mm
winding motor 10N.m 1.1KW 1.1KW 1.1KW
Winding speed 10-80M/min 10-80M/min 5-60M/min 5-60M/min
Cover dimension 1.4x2.0x3.2m 1.45x2.28x3.2m 4.0x1.1x4.0m 4.2x1.55x4m
