Features Gallery Product Description Request A Quote

Features

Specifications

Application: PIPE

Plastic Processed: PPR

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoALA

Screw Diameter (mm): 65

Screw L/D Ratio: 33:1

Screw Speed (rpm): 37 Rpm

Showroom Location: Egypt, Brazil, Peru, Pakistan, Russia, Argentina, Romania, Bangladesh, Ukraine, Uzbekistan, Tajikistan, Malaysia, Australia

Voltage: 380U, 50HZ, 3P. Customized

Dimension(L*W*H): 38000X3400X3000mm

Power (kW): 150

Weight: 5.5TON

Warranty: 1 Year

Key Selling Points: Competitive Price

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Shops, Advertising Company

Marketing Type: Ordinary Product

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty Of Core Components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine

Main Extruder: SJ65 Single Screw Extruder For Maximum 63mm PPR Pipe Making

Raw Material: PP Granules For PPR Pipe Making

Machine Color: Can Be Customized

Extruder Heating Barrel: Ceramic Heating For Keeping Temperature

Cooling Tank Method: Spraying

Inverter: ABB Or Equivalent Brand

Main Motor: SIMO Or Equivalent Brand

Raw Materials Feeding: By Vacuum Loading

Final Product: PPR Pipe For Hot And Cooling Water

Final PPR Pipe Stacker: 6 Meters

After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Egypt, Brazil, Pakistan, Russia, Thailand, Australia, Argentina, Bangladesh, Kazakhstan, Ukraine, Uzbekistan

Certification: CE

Basic Infomation

Certification: CE

Payment & Shipping Terms

Packaging Details: Standard plywood and film packing for Plastic PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine

Supply Ability: 2000 Set/Sets per Year Plastic PPR Pipe Cooling Drinking Water Pipe making machine

Product Description

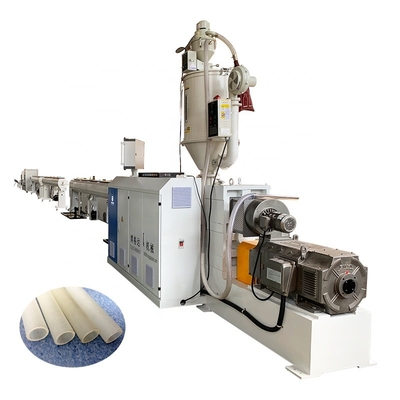

20-63MM Plastic PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine

Finished Product

PPR pipe applications

1. Cold and hot water system of the building, including the central heating system 2. The heating system in the building, including the floor, wall panels and radiant heating system 3. Pure water supply system that can be directly drinkable 4. Central (centralized) air conditioning system 5. Industrial piping systems for transporting or discharging chemical media 6. Piping systems such as the gas path used for cylinder transmission

PPR pipe Advantages:

1. Hygienic & non-toxic: PPR raw materials- non-toxic and tasteless, can be used in pure water drinking pipeline systems

2. Good heat resistance: working water temperature is 95°C, short-term use temperature can reach 120°C, long-term continuous use under the conditions of temperature 60°C and working pressure 1.2Mpa 3. Corrosion resistance and non-scaling

4. Light weight, high strength and good toughness 5. Heat preservation and energy saving 6. The installation is convenient and reliable, and the hidden danger of water leakage is eliminated 7. Beautiful appearance: smooth inner and outer walls, soft color, beautiful appearance 8. Pipeline system has a life of more than 50 years under normal use

Product Description

PPR Pipe Cooling Drinking Water Pipe PPR Hot Water Pipe Extrusion Making Machine List
NO	Machine Name	Qty
1	Automatic vacuum loader and hopper dryer	1 SET
2	SJ65/33 Single screw extruder	1 SET
3	Co-extruder for mark line (by choosen)	1 SET
4	Extrusion mould with different diameter	1 SET
5	Water tank for water spraying	3 SETS
6	Haul off machine with customized rubber block	1 SET
7	Non-dust cutter	1 SET
8	6 Meters final stacker for discharge	1 SET

SJ65/33 Singe screw extruder

1. Main motor: SIMO brand, 75KW, DC

2. L:D=33:1

3. Extrusion capacity: 120-180KG/H

4. Extrusion speed: 10-12m/min

5. Main motor control: inverter with ABB brand or other Equivalent brand

6. Heating by ceramic heating

Mould(including heater and calibrator

1. Material: high-quality wearing resistance copper

2. Can change core die and mouth die

3. 6 Heating zones

Spraying water tank

1. Tank material: parts touched with water are made of stainless steel

2. With double filtration system

3. With water level control

4. Tank up and down can be adjustable

Haul off machine for ppr pipe making

1. Haul off method: by caterpillar

2. Driving speed: 1-12m/min

3. Driving motor: 1.5kw*2, AC

Cutter

1. Non-duct cutting

2. Pressing method: pneumatic press

3. With movement synchronized with encoder

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

BOGDA Machinery Group is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. Deeply trusted and praised by customers. BOGDA company has many subsidiaries such as plastic pipe sequipment, sheet/board/film intelligent equipment, intelligent automation equipment, and granulation equipment. We are familiar with kinds of plastic raw materials to help you choose the most suitable machine on best quality by economically.
The main products of the company are:
1. PVC/PP/PE wood plastic production lines
2. PVC/PP/ wide sheet production lines
3. PVC/UPVC door and window profiles, ceiling panels, wall panels, window sill panels, wall hanging panels and other profiles extrusion production lines
4. PC/PA/ABS and other profiles production lines
5. PVC pipe production lines
6. HDPE/PE/PVC/PPR/PERT solid wall pipe production lines, as well as HDPE/PE gas pipe production lines
7. Vertical and horizontal HDPE/PP/PVC corrugated pipe production lines & reinforced winding pipe production lines
8. Multi-layer and single-layer PE/PP/PS/HIPS/GPPS/PC/ABS/PLA/PET/PMMA/APET/PETG sheet production line
9. EVA/POE/PVB/SGP film production line; TPU/TVB film and lithium battery separator production line
10. All kinds of PE/PP/PLA/PET pelletizing units
11. PVC/PE/PP automated centralized feeding system
12. PP meltblown fabric and variousspunbond non-woven fabric production lines
13. SPC LVT PVC Floor Production Line
14. PVC foamed board extrusion production lines
15. Recycling auxiliary equipment related to extrusion line, such as extrusion mold, plastic shredder, plastic crusher, plastic
pulverizer, cooling tower, automatic screw loader, hopper dryer, plastic mixer and etc.

Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia,
Turkey, Italy, Poland, Brazil, Romania, etc. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.

BOGDA has advanced design concepts in the extrusion field, strives for perfection in product quality, and continues to improve in technology. It can provide customized solutions for each customer to meet the different needs of customers. Project planning, product positioning, plant planning, equipment installation and commissioning, customer staff training, equipment after-sales maintenance and other all-round services. Our advantage is to provide customers with desired, satisfactory, and high-quality products to help customers create the greatest Profits and business opportunities, customer success is our ultimate goal.

FAQ

1. who are we?
We are based in jiangsu, China, start from 2020,sell to Domestic Market(15.00%),Mid East(15.00%),Western Europe(15.00%),Eastern
Europe(15.00%),Southern Europe(15.00%),Northern Europe(15.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South
Asia(8.00%),Oceania(5.00%),Africa(5.00%),South America(5.00%),North America(5.00%),Central America(5.00%). There are total about
51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Plastic sheet extrusion line,Plastic board extrusion line,Plastic pipe extrusion line,Plastic profiles extrusion line,Plastic
extrusion mould

4. why should you buy from us not from other suppliers?
200 workers, 12000m2, 2 hours to shanghai, more than 15 years experience. ISO, CE certificated. Free online training and
information about raw material.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
