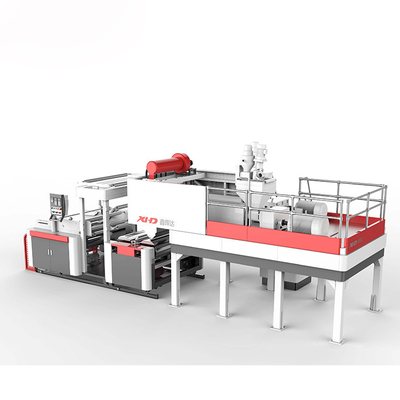

The Best Selling Film 3 Layer Lldpe Material Film Machine Pallet Wrap Film Extruder

1 Set
MOQ
The Best Selling Film 3 Layer Lldpe Material Film Machine Pallet Wrap Film Extruder
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Film
Plastic Processed: PE
Condition: New
Screw Design: Three-screw
Screw Diameter (mm): 80 Mm
Screw L/D Ratio: 30D
Voltage: Up To Customer
Dimension(L*W*H): (L)7600*(W)3500*(H)3500mm
Power (kW): 90
Weight: 9.5T
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction Works , Advertising Company, Packaging Industries
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Output (kg/h): 100 - 200 Kg/h
Certification: ISO14009001 /SGS/CE/CCC
Screw Diameter: 55/80/55mm
Screw L/D: 1:30mm
Screw Speed: 20-150rpm
Width: 1000mm/(3*500mm)
Thickness: 0.012-0.05mm
Capacity: 120-220kg/h
Layer Structure: AB/ABCBA
AC Motor: Siemens Beide
Electrical Controller: Touch Screen PLC
Automatic Grade: Fully Automatic
Basic Infomation
Certification: ISO14009001 /SGS/CE/CCC
Payment & Shipping Terms
Packaging Details: 1) Pallet stretch film making machine is fully packed with PE stretch film; 2) Machine is fastened to the corners of the containers; 3) Packing dimensions: 7.6X3.5X3.5 M; 4) Gross weight: 9.5T; 5) Container needed: 1X40 HQ;
Supply Ability: 30 Set/Sets per Month
Product Description

XHD Double Layer Polyethylene Stretch Film Making Machine

Product Specification

Product Advantages

  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
  • Patented automatic paper cores unloading & loading system (Optional )
  • Optional full automatic thickness gauge
  • Excellent stretch film rolls quality for both hand use rolls and stretch use rolls

Work Team

FAQ

FAQ

1. Q: Can your machine produce other kinds of film?
A: Yes. Our machine also can produce silage film and PE cling film.
2. Q: What's the thickness range of the film produced by your machine?

A: For stretch film, the thickness is from 12 microns to 30 microns.

For cling film, the thickness is from 8 microns to 10 microns.

For silage film, the thickness is from 15 microns to 35 microns.

3. Q: Can we customize some components of the machine?

A: Yes. Most of our components are from China or worldwide famous suppliers.

You don't have to worry about the replacement of broken parts or the after-sale service.

4. Q: When can you send the engineers for installation, debugging and training of our workers?

A: It depends, but we usually arrange the engineers before the shipment.

The buyer can have his machine running once he receive it.

We also have some agents around the world to provide installation service or technical support.

All traveling cost of the engineer the such as air tickets, food and shelter cost will be borne by the buyer.

Related Products

Shipping & Packaging

Packaging Details(1)Fully packed with PE stretch film
(2)Machine is fastened to the corners of the containers
Delivery Time60 working days after order confirmed
