1000mm two layer stretch film extrusion machine
1) Two screw co-extrusion casting film, the film is better tension, better elongation.
2) It can produce both stretch film and cling film in different thickness. For stretch film: it can make machine film and hand film.
3) Full auto grade. Material auto loading, auto winder exchanging, auto rim material in-line recycle system.
4) The layout and operation make it user friendly and ideal for volume production. A skilled operator is not required.
5) CE certification and one year quality guarantee.
|
Model |
JZ-55*75/1250 |
JZ-65*90/1850 |
|
Width of material |
1000mm(500mm x 2 rolls) |
1500mm(500mm x 3 rolls) |
|
Thickness of material |
10-50micro |
|
|
Speed |
70-100m/min |
|
|
Diameter of screw |
55mm, 75mm |
65mm, 90mm |
|
Output |
100-135kg/h |
140-180kg/h |
|
Gross power |
78kw |
100kw |
|
Overall dimension |
6000 x3200 x3000 |
7500 x3500 x 3000 |
1. Machine structure is simple, easy operation, easy maintenance.
2. Special spiral cooling roller, 2 pcs cooling roller for better cooling function.
3. Oscillation conveyer of the film to correction of the film running.
4. Auto winder exchanging with double station pneumatic control system.
4. Adopt the foreign brand electronic and quality guarantee.
5. Low noisy, low power consumption, uniform winding.
6. Perfect after sale service. The boss is the main engineer and 24 hrs available. Speaking English.

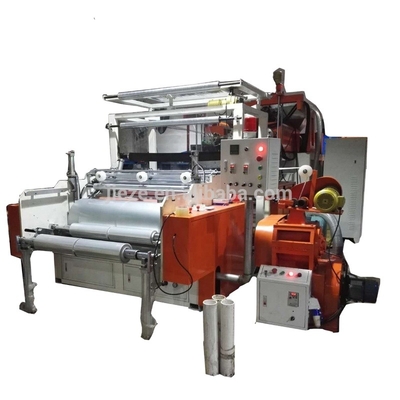

Machine Photoes
PE stretch film, cling film
