Home /Products/PVC Film Extrusion Line/Pellets Waste Plastic Greenhouse Film Extruder Machine

Pellets Waste Plastic Greenhouse Film Extruder Machine

1.0 Sets
MOQ
Pellets Waste Plastic Greenhouse Film Extruder Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Granules, Pelletizing
Plastic Processed: PE, PP, PVC, ABS, Polystyrene, PA, EPS, HDPE, PPR, ABS/PP, PE/PP, Lldpe, LDPE
Condition: New
Screw Design: Double-screw, Doble Screw
Twin Screw Type: Co-rotating Parallel Twin-screw
Screw Diameter (mm): Other 125-260
Screw L/D Ratio: 16:1
Screw Speed (rpm): 60 Rpm
Showroom Location: None
Voltage: 380V 50HZ(or According To Customer)
Dimension(L*W*H): 3200*1700*1600MM
Power (kW): 37
Weight: 3000 KG
Warranty: 1 Year
Key Selling Points: High Productivity
Applicable Industries: Manufacturing Plant
Marketing Type: Ordinary Product
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 3 Years
Core Components: Bearing, Gear, Gearbox, Screw
Name: Plastic Extruder
Raw Material: PP PE
Processing Type: Exturding
Motor: 22-75kw
Capacity: 200-500kg/h
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden Case
Supply Ability: 50 Set/Sets per Month
Product Description
Product Overview

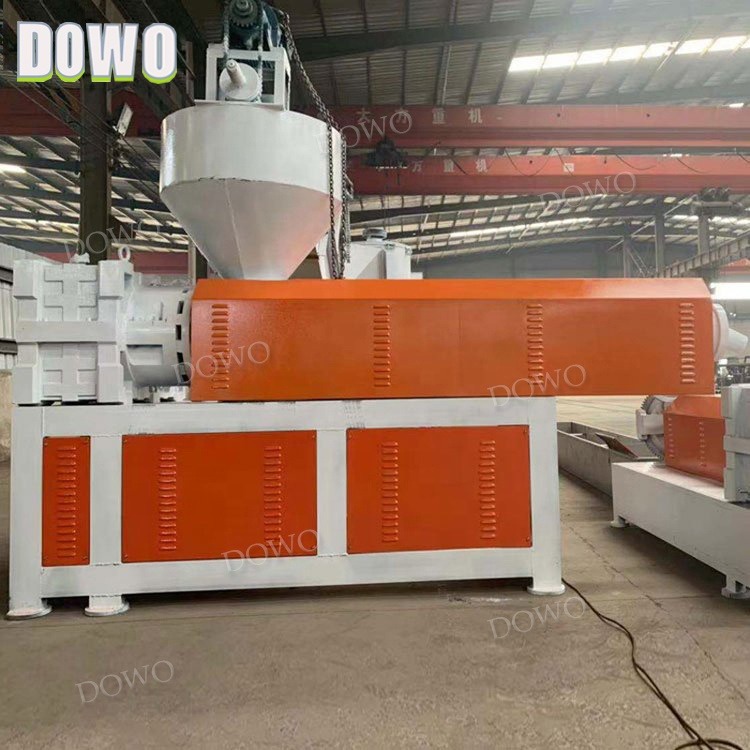

Plastic Extruder

The plastic /extruder /granulator adopts a special screw design and different configurations, which is suitable for the production of PP, PE, PS,ABS, PA, PVC, PC, POM, EVA, LCP, PET, PMMA and other plastics for recycling and color mixing granulation.
The gearbox adopts a high-torque design to achieve noise-free and stable operation. The screw and the material have been specially hardened, which has the characteristics of wear resistance, good mixing performance and high output. The design of vacuum exhaust or ordinary exhaust port can exhaust moisture and exhaust gas during the production process to make the output more Stable, stronger rubber particles, ensuring good product quality.
FEATURES AT A GLANCE
1.run smoothly 2.Easy to operate 3.Complete specifications

4.The screw and barrel are all made of 45# steel high-strength steel, which has a long service life. 5.The appearance of the machine is beautiful and generous, and can be painted according to customer requirements.

PRODUCT SPECIFICATIONS
Model
Main screw length
Vice Screw L/D
Main power
Vice screw length
Vice Screw L/D
Vice Power
Vice screw diameter
Capacity
DW-140
2300mm
16:1
45kw
1200mm
10:1
15kw
120mm
3-3.5t/24h
DW-160
2500mm
16:1
55kw
1200mm
10:1
18.5kw
120mm
4-5t/24h
DW-180
2600mm
16:1
75kw
1400mm
10:1
22kw
140mm
5-7t/24h
DW-200
3200mm
16:1
90kw
1800mm
10:1
30kw
180mm
7-8.5t/24h
DW-250
4000mm
16:1
110kw
2000mm
10:1
45kw
200mm
8-10t/24h
PRODUCT CONFIGURATION
Inner Screw
Semi-finished product mold
Temperature Control System
Raw Material
Final Pellet
Delivery
Factory
Customer Photos
FAQ
Four reasons leading to insufficient extrusion of plastic pelletizers: 1. Temperature reason To increase the temperature of the barrel and nozzle, check the millivoltmeter, thermocouple, resistance electric heating ring or far-infrared heating device and heating system, increase the mold temperature, and check the mold temperature control device. 2. Mould reason Plastic pelletizer runner is too small, gate is too small, nozzle hole is too small, gate position is not reasonable, gate number is not enough, cold slug hole is too small, exhaust is insufficient, injection cycle caused by mold is abnormal. 3. Equipment reason The hopper is interrupted, the neck of the hopper is partially or completely blocked, the feeding amount is insufficient, the feeding control system is not operating normally, the plasticizing capacity of the injection press, and the injection cycle caused by the equipment are abnormal. 4. Reasons for extrusion conditions The injection pressure of the plastic granulator is too low, the injection pressure loss during the extrusion cycle is too large, the injection time is too short, the injection total pressure time is too short, the injection rate is too slow, the flow in the cavity is interrupted, and the filling rate is not equal , Abnormal injection cycle caused by operating conditions.
