Home /Products/EVA Film Extrusion Line/Sheet Plastic Film Extruder ASA Film Extruder Extrusion Machine

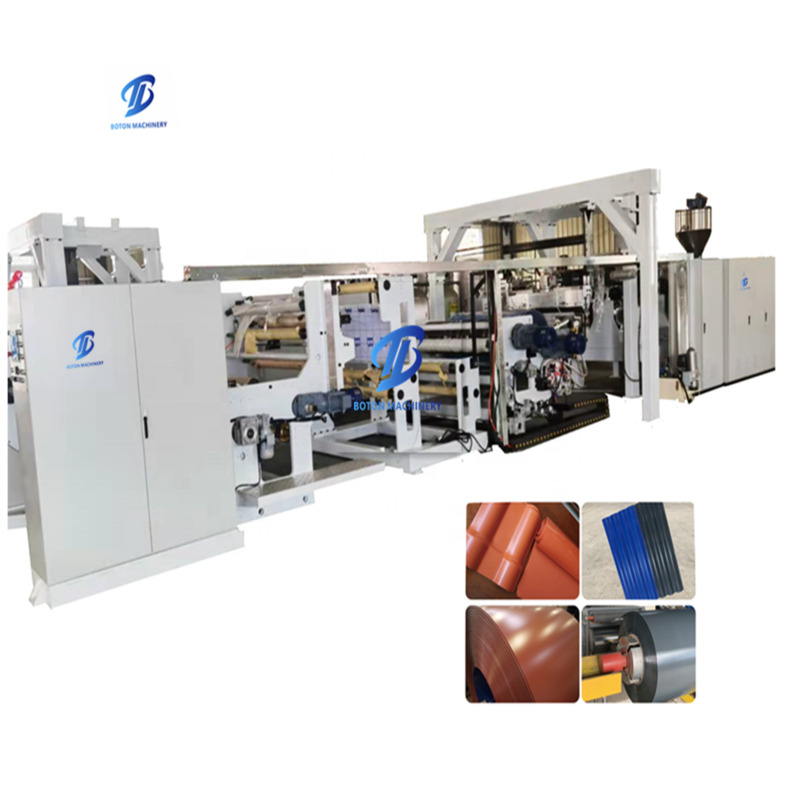

Sheet Plastic Film Extruder ASA Film Extruder Extrusion Machine

1 set
MOQ
$300,000.00(1 - 1 sets) $290,000.00(>=2 sets)
Price
Sheet Plastic Film Extruder ASA Film Extruder Extrusion Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Sheet, Film
Plastic Processed: ASA
Condition: New
Screw Design: Single-screw
Screw Material: 38CrMoALA
Screw Diameter (mm): 120
Screw L/D Ratio: 30:1
Screw Speed (rpm): 90 Rpm
Showroom Location: Egypt, Russia, Morocco, Argentina, UAE, Algeria, Bangladesh
Voltage: 220V-440V
Dimension(L*W*H): 25*2.8*2.5m
Power (kW): 260
Weight: 22000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant, Construction Works
Marketing Type: Hot Sale 2022
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Gear, PLC, Screw
Name: ASA Film Extrusion Machine
Extrusion Type: Casting
Extruder Type: Single Screw Extruder
Film Width: 915-1500mm
Film Thickness: 0.08-0.25mm
Film Application: Roof Laminating
Inverter: ABB Inverter
Temperature Control: Omron Japan
Contactor: Siemens Contactor
PLC Control System: Siemens PLC Control System
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 1 Set/Sets per Month
Product Description
Machine Description

Plastic ASA Casting Film Extrusion Line Production Line

ASA Film Extruder Extrusion Machine

ASA Casting Film Making Machine Extrusion Machine


ASA is made by copolymerization of styrene and acrylic rubber. Technically speaking, ASA material does not only maintains the main characteristics of ABS, but also combines the weather-resistance advantages of acrylic material, so, ASA products can be used outside.
Taking higher content of ASA rubber powder as raw materials, ASA film has passed the 12,000-hour weathering test of the National
Chemical Construction, and the color retention performance is many times higher than that of the current co-extruded films on the market.
This ASA film extrusion line can produce ASA film with higher uniformity, and there is no color difference and no thin spots.
This extrusion line is one recycling line that during extrusion, waste material can be recycled and reused again.
Extrusion Line Details
This Plastic ASA Film Extrusion Line includes:
Materioal loading machine, Material hopper, Single screw extruder, Extrusion mould, Casting machine, Thickness gauge and Winding machine.

Main Advantages of the ASA FILM EXTRUSION LINE:
---A full set of turnkey projects: full support from plant construction, raw material
procurement, equipment production technology training, etc.
---No need material drying, which can save production cost in a great extent.
---Large output, and production speed can be up to 60m/min.
---With full set of PLC automatic control system and automatic winding machine, this line is equipped with higher automation, which saves labor cost.
---Full set of famous branded electrical components ensures machine’s stable running and production.
---Using hanger T-die with double throttlingandinner plugging design, under the premise of ensuring the uniformity, film width can be adjusted online.
---Temperature difference control is +/-1℃to ensure uniform thickness of ASAfilm.
Main Parameters
Model
B-ASJ 120
Diameter
120mm / Single Screw
Material
ASA
Usage
Laminating
Thickness
0.08-0.25mm
Width
≤1500mm
Motor Power
132KW
General Power
≈260 KW
Line Speed
≤ 60m/min
Size
26×3.5×1.8M





Single Screw Extruder
--special designed screw and barrel for asa material



Film Casting Machine
---Specially designed for ASA material



Thickness gauge
--used to control thickness




Automatic winding machine
--PLC control system
--double winding positions
--auto winding
--auto roller-changing --winding speed can be up to 60m/min


Electric Control System
---Siemens PLC control system
---close-loop control
Products Description
Plastic ASA Film
Advantages of ASA Film
ASA film has excellent properties, such as good flexibility, hardness strength, dimesion stability, exteme-weather-risistance, good UV-proof, good aging-resistance, good heat resistance, etc.
Thus it is suitable for long time outdoor use.
Normally, ASA film is coated or laminated on the top of other products to get better chemical resistance and UV resistance at outdoor condition.
Packing & Delivery
Machine will be packed by wooden box or plastic film which are suitable for sea shipping.
Our Partners

Main Partnets

Our main parts are from: Siemens, ABB, Scheneilder, Omron, RKC, etc
FAQ
Q: Is your company a factory or a trading company?
A: we are a factory, and we are engaged in plastic extrusion business more than 10years.

Q: Can you guarantee your quality?
A: Of course. Quality is the basis for one factory. More importantly, we put a high value on our reputation. Best quality is ourprinciple all the time.

Q: What is the payment term?
A: 30% downpayment by T/T and 70% balance by TT before delivery. But L/C, Western Union are acceptable.

Q:What about after service?
A:We offer 12months free warranty since the machinery arrived at your factory. But our service is life-long.

Q: How to reach our factory?
A: It will take 20 minutes from Qingdao Jiaodong International Airport to our factory by car, and we will pick you anytime.
