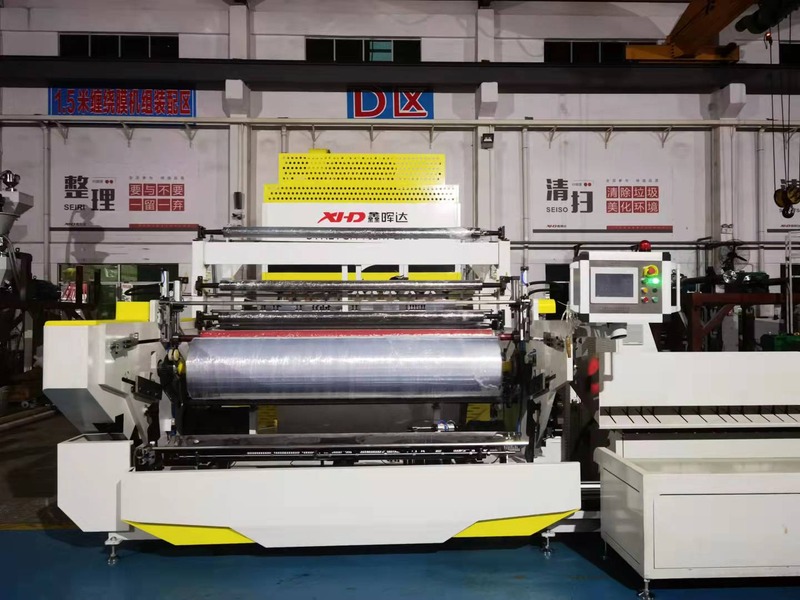

lldpe stretch film machinery stretch film extruder machine cast pe film machinery
High quality lldpe stretch film machinery stretch film extruder machine cast pe film machinery
|
Model |
XHD-65/90/65X1850 |
|
Layers |
three/five layer |
|
Screw Diameter |
Φ65/90/65mm |
|
Screw L/D |
1:30mm |
|
Screw speed |
20-150rpm |
|
Width |
100-1500mm/(3*500mm) |
|
Total Power |
150KW |
|
Thickness |
0.012-0.05mm |
|
Capacity |
180-220kg/h |
|
Layer Structure |
ABC/ACBCA |
|
Total Weight |
15T |
|
Dimension |
(L)12000*(W)4500*(H)4000 |
Features of lldpe stretch film machinery stretch film extruder machine cast pe film machinery
1.The stretch film extruder machine alloy screw adopts special mixing function and high plasticizing design which combine import static mixer to ensure plasticization is good, color is uniform and increase extrusion capacity greatly.
2.Stretch film extruder machine T-die material employs imported top special mould steel. By high precise process and treatment to ensure the long-term use of the T-die and no deformation.. Meanwhile insures material extrusion is more smooth and stable.
3.Stretch film extruder machine inside cool roller adopts two-way circulation design and built-in spiral flow way to ensure roller surface temperature is equal.
4.Strech film extruder machine winding station can move forth and back. Adopts advanced torque motor with four-axis automatic tension control. Both the speed and film width arefreely adjustable
Optional system of High quality pallet wrap stretch film making machine
1.Sub-atmospheric Vacuum Pump.
2.Melting Gear Pump and PID Control System.
3.Accurate Touchable Screen Temperature Controller.
4.Robot Hands for Roll-change and Roll-rewinding Automaticlly
5.Including Automatic Carton Loading&Unloading.
stretch film made by our machine
Machine loading and shippment
XHD EXHIBITION AND CERTIFICATE
Patent certificate
Strong Service team
Why did you choose us ?
Xinhuida always hold the faith of high quality ,honesty , refinement, and innovation ,providing our customers best services and products . Our products are sold all over the world .Many customers are think highly of us and give good reputation . Don't hesitate .We are waitting for u !
FAQ
>1. Q: Can your machine produce other kinds of film?
A: Yes. Our machine also can produce:
>cling film machine , silage film machine
>2. Q: What's the thickness arrange of the film produced by your machine?
A: For stretch film, the thickness is from 0.01mm to 0.05 mm;
For cling film, the thickness is from 0.008 to 0.01 mm;
For silage film, the thickness is from 0.012 to 0.05 mm;
Please note, the thickness of silage film sold in the market is 0.015 to 0.035 mm.
>3. Q: Can we customize some components of the machine?
A: Yes.
Most of our components are from China or worldwide famous suppliers.
You don't have to worry about the replacement of broken parts or the after-sale service.
>4. Q: When can you send the engineers for installation, debugging and training of our workers.
A: It depends, but we usually arrange the engineers before the shipment.
The buyer can have his machine running once he receive it.
We also have some agents around the world to provide installation service or technical support.
All traveling cost of the engineer the such as air tickets, food and shelter cost will be borne by the buyer.
