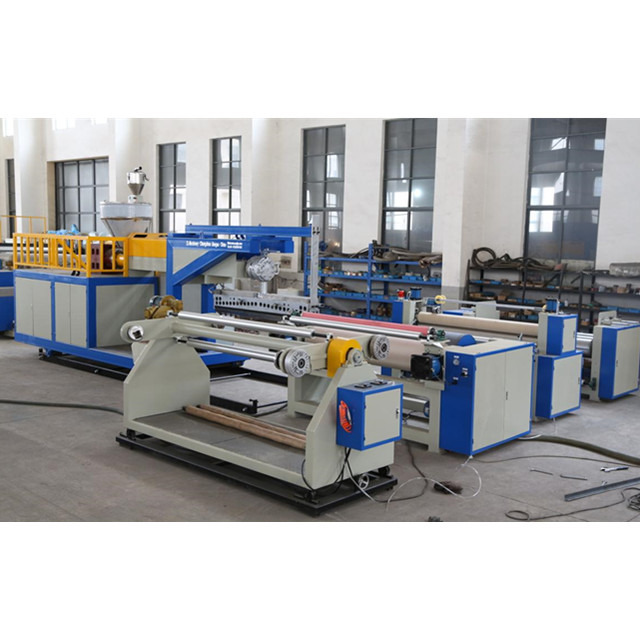

New Design Food Cast Iron Film Extrusion Laminating Machine Line

1 Set
MOQ
New Design Food Cast Iron Film Extrusion Laminating Machine Line
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Laminating Machine
Condition: New
Application: Food, Machinery & Hardware, Textiles
Packaging Type: Cartons, Bags, Film, Case
Automatic Grade: Automatic
Driven Type: Hydraulic
Voltage: 380V 50HZ380v 50hz 3phase
Dimension(L*W*H): As Customized
Weight: According To Size
Warranty: 1 Year, 1 Year
After-sales Service Provided: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas
Certification: CE Certificate
Name: Extrusion Machine
Raw Material: PP/PE/HDPE/LDPE/LLDPE
Usage: Wide Usage
Inverter: Germany-Siemens
Basic Infomation
Certification: CE certificate
Payment & Shipping Terms
Packaging Details: Small parts is for wooden case,big parts are wrapped by strong film and steel rope.
Supply Ability: 2 Set/Sets per Month
Product Description
Product description

 Product Application

 According to different orders and usages,ZLX-LM series lamination and laminating combination machines can finish works of one-layer lamination,double-layer lamination or laminating combination of two or more layers of base materials.Machines from this series have been widely used in doing laminating or combination for non-woven fabrics,paper,film,plastic sheet,textiles and a lot of composite materials,which modifies functions and adds value to products in industries such as food,packaging,advertising,daily consumption,health care,medical industry,construction industry,etc.



Products Parameter
 T-die width
800-3500 mm
Screw L/D ratio
 28:1-36:1
Line speed
 2-200m/min(depending on product kinds and material properties)
Installed power
95-320kw(Depending on product kinds and material properties)
Laminating layer thickness
0.01-2mm(Depending on product kinds and material properties)
Product width
600-3300mm
Lamination Output
90-350kg/h

 Main Features


1. The whole technics flow from feeding raw material to forming,and casting device adopts the advanced
electric equipment,PLC controller &Human machine interface,they could be controlled solely or with high
automation
2. The speed of extrusion and molding is controlled by PLC,The molding roller,silicone roller and assistant
cooling rolle adopts recycle water cooling structure,it is good for casting effect,The molding rollers clutch
adopts the pneumatic controller.
3.Electric Technology adopt international famous brand,it can suitable all countries.



Certifications
Detailed Images



 Machine Parts


Name: Inverter

Brand: DELTA,Siemens,Panasonic,ABB

Original: China,Germany ,Japan,Swiss

All details are according customer.



 This device is for edge offal recycle.

Granulating Speed:150m/min

Crusher:High speed crusher



Main Features

Name: PLC

Brand: LG, AB,ABB,Panasonic

Original: korea,America,Japan

This machine all parts are control by PLC,it can feedback timely.

Our Service



 * Respon for the installation and commession.


* Engineers available to service machinery overseas.



 Goods check very seriously,to ensure high quality

Packing & Delivery
Packaging
Size
20"&40"container
Weight
23T & 28T


Packaging Details
The small parts is packed by wooden box(Size: L*W*H). Big parts is wrapped by strong film or soft cloth,and all parts are fixed by steel rope with container.

Packing
Packing details
Small parts are packed by hard wooden case or wrap strong film and soft cloth.
Related Products

Lamination Film

91.8% Response Rate

Paper Lamination

91.8% Response Rate

Non-woven Lamination

91.8% Response Rate

Our Company

 Changzhou ZL-Machinery Co.,Ltd.(ZLMC) is located on Lvshu East Road,Xuejia Town Industrial Zone,Xinbei District,Changzhou,the dragon city,jiangsu prov.,With convenient transport,the company adjoins highways and ChangZhou airport.By accumulating over 20years of experience in plastic machinery production technology and manufacturing hundreds of plastic machines,the company has successfully developed and produced high-speed film casting units,breathable casting film production lines,multi-layer co-extrusion casting units,laminating and coating composite units,geotextile production lines,cast film and waterproof plate production lines,EVA solar cell encapsulant film production lines.stone paper production lines,small and medium color testing machines,etc.Our company,well receive and trusted by the public,is technically cooperating with scientific research organizations as well as large and medium-sized institutions.Our technical team has rich experience and strong executive ability,and the equipments developed by the technical team are with stable and reliable quanlity,excellent index and hign flexibility,have been obtained wide recognition and high praise from users.Our staff alwasy follow the principle"From Manufacturing to Serving",and try our best to provide our machines with top quality of professional solutions and service to every .
