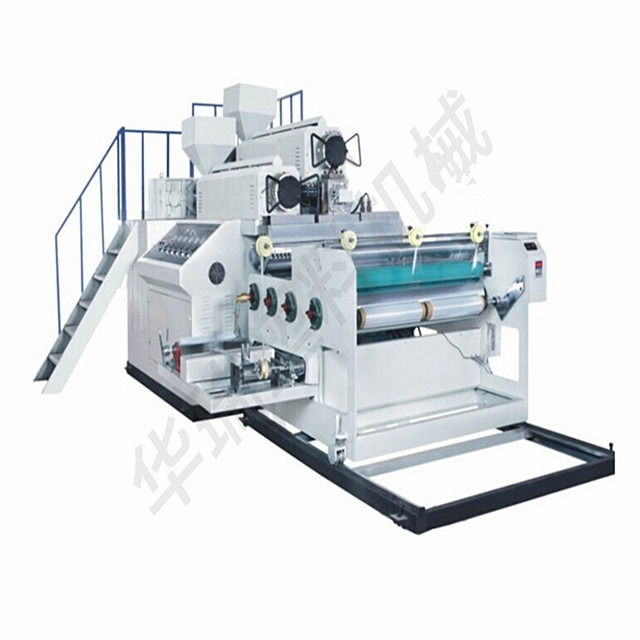

Co-Extruding and flim casting machine summerize
This Co-Extruding and flim casting machine uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It is a good substitute for hot shrinking packaging film during transportation.
1 .It profits advanced technology from aboard and manufacture by absorption, improvement, innovation.
2. It is entire frequency conversion control, movement stable,
3. highly effective and the low energy consumption.
4. The product adopts the craft of one time forming.
5. The special side material rollout element by round-trip.
6. It can produce one-side stretching film.
|
Model |
SJ-50 |
SJ-60 |
|
Max. Folding Width of film |
200-550mm |
200-550mm |
|
Main Output |
50kg |
60kg |
|
Main motor power |
7.5*2kw |
15*2kw |
|
Screw Diameter |
50mm*2 |
60mm*2 |
|
L/D ratio of screw |
28:1 |
30:1 |
|
Film thickness |
0.015-0.04mm |
0.015-0.04mm |
|
Weight of machine |
2800kg |
3000kg |
|
Total power |
30kw |
30kw |
|
Overall Dimensions[L*W*H] |
5.6*2.6*1.8m |
6.0*1.5*2.5m |
Co-Extruding and flim casting machine characters reasonable design, power consumptive and few, high output, suitable and in extensive range, reliable quality ,easy operation and maintain, profitable economy, is the ideal equipment which produces packing and agricultural plastic film canopy film of various kinds of packages printing.
Product:
Wholesale fully automatic low price high quality casting stretch cling film machine mainly use LLDPE, LDPE, PVC or recycled LLDPE material to produce single side cling or double sides cling cast stretch film and so on.
Main features:
1. Main configuration: Single electrical power control box, extruders, single die, cooling forming rollers, edge trim film inline recycler or on-site recycling system, automatic edge trimming system, automatic winding system, double pneumatic control winding shafts etc.
2. Higher speed and higher output with stable quality, good ideal tensile and tear resistant stretch cling film. Fully automatic casting stretch cling film machine is applied to single side cling or double sides cling stretch film.
3.Heating and water cooling system is high efficiency and crucial components are imported or adopt international brand products to ensure making even and good ductility stretch cling film.
4. Swing system is installed to adjust the film thickness and evenness. PLC controlled, fully automatic.
5. The alloy steel screw adopts special mixing function and high plasticizing design which combine import static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.
6.Packaging condition: Packed fully with EPE foam, blanketry and stretch film; wire and cable is fastened at on the bottom of the container.
| Model | HR-650 | HR-1250 |
| Screw diameter | 50 | 60*2 |
| Screw ratio L/D | 30: 1 | 30: 1 |
| Die head width | 650mm | 1250mm |
| Film width | 600mm | 1200mm |
| Film thickness | 0.017-0.05mm | 0.017-0.05mm |
| Max. output | 30kg/min | 100kg/min |
| Linear speed | 50-100m/min | 50-100m/min |
| Electric total capacity | 34 kw | 120kw |
| Overall dimension(m) | 4.5*2.0*1.7 | 11*4.5*3 |
| Machine weight | 2.6T | 8.0T |
